ComPAC™
50 – 600 Watt DC-DC Power System


Description

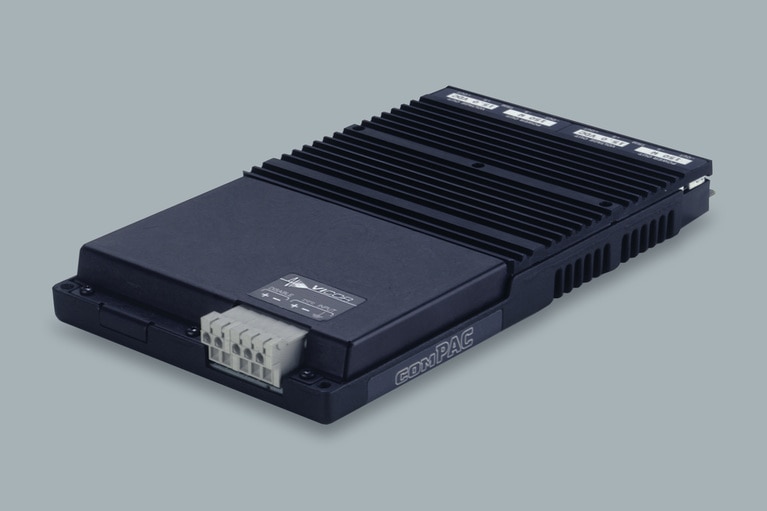

The ComPAC is a high density DC-DC power system delivering up to 600 W from one, two, or three outputs enclosed in a package just 0.99" (25,2 mm) in height. The ComPAC meets British Telecom and European Norms for input surge withstand and meets Conducted Emissions of EN55022, Class B. The ComPAC is offered with input voltage ranges optimized for industrial and telecommunication applications and provides extended input overvoltage capability, undervoltage lockout, and master disable.

Specifications
Input Voltages   24 VDC
48 VDC
300 VDC
Output Voltage   2 – 95 VDC
Output Power   Up to 600 W
Efficiency   80 – 90%
Dimensions   Three package configurations






PDF Icon Data Sheet »




To configure your ComPAC
click on the button below.



Configure





Custom Turnkey Solutions



Can’t find a match for your specs?


We can design and manufacture turnkey custom power systems that meet your specific needs! The sole focus of Vicor Custom Power is designing and manufacturing turnkey custom power systems that meet your specific needs. Vicor Custom Power maintains the flexibility of a small entrepreneurial company while taking advantage of Vicors technical and business resources to deal effectively with your most challenging power requirements. Vicor has invested in the tools and resources to offer you full service solutions from prototype to mass production with the shortest leadtimes and the lowest risk.



Find out more about Vicor Custom by clicking on the link below.

Vicor Custom Power »



Features & Benefits
  • Low profile
  • EN55022 Class B EMI
  • Conduction or fin cooled package
  • Custom output voltages available

Packaging Options

ComPAC / MI-ComPAC

The drawings below also include the heatsink (H1) option

Drawing
Number
     Description

25350        PDFOutline Drawing for ComPAC, "L" Configuration (Single) »

25350        DXFOutline Drawing for ComPAC, "L" Configuration (Single) »

25349        PDFOutline Drawing for ComPAC, "M" Configuration (Dual) »

25349        DXFOutline Drawing for ComPAC, "M" Configuration (Dual) »

25351        PDFOutline Drawing for ComPAC, "N" Configuration (Triple) »

25351        DXFOutline Drawing for ComPAC, "N" Configuration (Triple) »

25353        PDFOutline Drawing for ComPAC, "P" Configuration (Dual) »

25353        DXFOutline Drawing for ComPAC, "P" Configuration (Dual) »

25352        PDFOutline Drawing for ComPAC, "Q" Configuration (Triple) »

25352        DXFOutline Drawing for ComPAC, "Q" Configuration (Triple) »

25348        PDFOutline Drawing for ComPAC, "R" Configuration (Triple) »

25348        DXFOutline Drawing for ComPAC, "R" Configuration (Triple) »



ComPAC / MI-ComPAC Conduction Cooled

Drawing
Number
     Description

17934        PDFOutline Drawing for ComPAC, "L" Configuration (Single) -CC* »

17934        DXFOutline Drawing for ComPAC, "L" Configuration (Single) -CC* »

17935        PDFOutline Drawing for ComPAC, "P" Configuration (Dual) -CC* »

17935        DXFOutline Drawing for ComPAC, "P" Configuration (Dual) -CC* »

17936        PDFOutline Drawing for ComPAC, "M" Configuration (Dual) -CC* »

17936        DXFOutline Drawing for ComPAC, "M" Configuration (Dual) -CC* »

17937        PDFOutline Drawing for ComPAC, "Q" Configuration (Triple) -CC* »

17937        DXFOutline Drawing for ComPAC, "Q" Configuration (Triple) -CC* »

17938        PDFOutline Drawing for ComPAC, "R" Configuration (Triple) -CC* »

17938        DXFOutline Drawing for ComPAC, "R" Configuration (Triple) -CC* »

17939        PDFOutline Drawing for ComPAC, "N" Configuration (Triple) -CC* »

17939        DXFOutline Drawing for ComPAC, "N" Configuration (Triple) -CC* »


                   *For conduction-cooled package add -CC to the end of the part number.
