DC-DC Isolated Regulated



DC-DC Isolated Regulated
Products range from the traditional full, half and quarter-brick DC-DC converter modules to the next generation high-density surface-mount products at less than the size of an equivalent 1/32 brick. The brick family offers tens of thousands of combinations of input voltage, output voltage and power levels.  Input voltages range from 10 – 400 Vdc; output voltages
from 1 – 95 Vdc; output power to 600 W; and a choice of temperature grades, from -55°C to +100°C. Products can be paralleled for high power solutions. High efficiency, high density building blocks with fast transient response – support a broad range of power levels and power architectures. These include centralized power (CPA), distributed power (DPA) and Factorized power architectures (FPA), allowing power architects to more easily design small, high performance, thermally enhanced, cost effective power system solutions.

Spacer
Blue Line

DCM™ Go
DC-DC Converter Module
Spacer
Input   290 V (160 – 420)
48 V (36 – 75)
28 V (16 – 50)
24 V (18 – 36)

Output   5, 12, 13.8, 15, 24, 28, 36, 48 V
Power   4623: Up to 600 W
3623: Up to 320 W

Efficiency   Up to 93%


Dimensions   4623 ChiP
47.91 x 22.80 x 7.26 mm

3623 ChiP
38.72 x 22.80 x 7.26 mm
Spacer

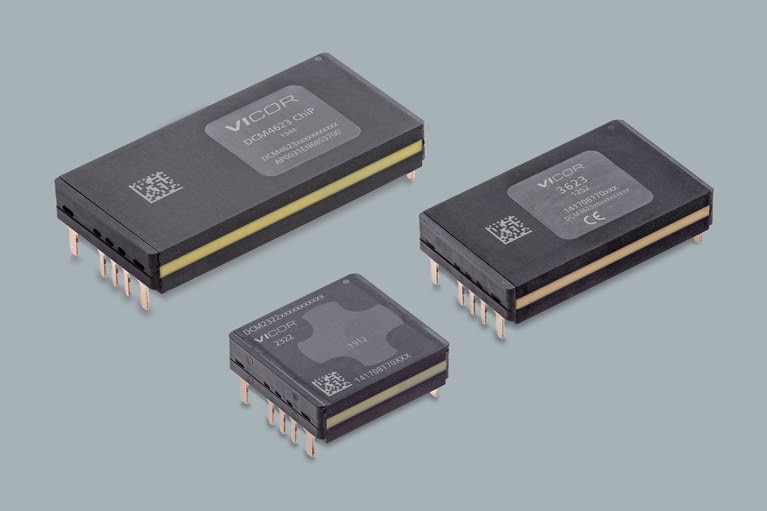

DCM DC-DC Converter Module
Spacer

Blue Line

PRM® Regulator and VTM® Current Multiplier Go
Spacer
Input   18 – 75 V
Output   0.7 – 55 V
Power   Up to 130 A
Efficiency   Up to 97% per module


Dimensions   Full-Chip
32.5 x 22 x 6.73 mm

Half-Chip
22 x 16.5 x 6.73 mm


PRM Regulator and
VTM Current Multiplier
Spacer


VI-200 / VI-J00 DC-DC Converters Go
Spacer
Input   10 – 400 Vdc
Output   2 – 95 Vdc
Power   VI-200: 50 – 200 W
booster modules for higher power
Spacer VI-J00: 25 – 100 W

Dimensions   VI-200 Full-Brick
4.6 x 2.4 x 0.5 in.
116.9 x 61.0 x 12.7 mm

VI-200 Half-Brick
2.28 x 2.4 x 0.5 in.
57.9 x 61.0 x 12.7 mm


VI-200 & VI-J00 DC-DC Converters


Spacer
blue line

PI31xx Go
Isolated DC-DC Converter Modules
Spacer
Input   48 V (36 – 75 V)
28 V (16 – 50 V)
24 V (18 – 36 V)
Output   3.3, 5, 12, 15, 18 V Regulated
(+/-3% over line / load / temperature)
Power   50 W / 60 W
dependent upon converter model
Efficiency   Up to 89%

Dimensions   0.87 x 0.65 x 0.265 in.
22 x 16.5 x 6.7 mm

Spacer
Cool-Power PI31xx Isolated DC-DC Converter Modules
Spacer

Spacer
blue line

Maxi, Mini, Micro DC-DC Converters Go
Spacer
Input   24 V (18 – 36 V)
28 V (9 – 36 V)
48 V (36 – 75 V)
72 V (43 – 110 V)
110 V (66 – 154 V)
150 V (100 – 200 V)
300 V (180 – 375 V)
375 V (250 – 425 V)

Output   2 – 54 Vdc
Power   Up to 600 W


Dimensions   Full, Half and Quarter Brick Packages
Spacer
Maxi, Mini, Micro DC-DC Converters
Spacer

Blue Line

BatMOD Go
Current Source Modules
Spacer
Input   48 Vdc
150 Vdc
300 Vdc

Output   12 Vdc
24 Vdc
48 Vdc

Power   200 W
booster modules for additional power


Dimensions   2.28 x 2.2 x 0.5 in.
57.9 x 55.9 x 12.7 mm

Spacer
BatMOD Current Source Modules
