PRM™ Regulator and VTM™ Transformer

PRM™ Regulators and VTM™ Transformers

Quick Links

PRM™ & VTM™ Datasheet Matrix »

Whole Family PRM & VTM Shortform »

Evaluation Boards »

Custom Turnkey Solutions

Can’t find a match for your specs? We can design and manufacture turnkey custom power systems that meet your specific needs!

USA:

Vicor Custom Power »

Full-Chip PRM:

Input Voltages: 24 V, 36 V, 45, V and 48 V
18 – 36 Vdc
18 – 60 Vdc
38 – 55 Vdc
36 – 75 Vdc
Output Voltage: 48 Vdc
Output Power: 120 – 320 W
Efficiency: Up to 97%

Full-Chip VTM:

Input Voltage: 26 – 55 Vdc
Output Voltage: 0.7 – 55 Vdc
Output Current Max.: 6 – 130 A
Efficiency: Up to 96%

Half-Chip VTM:

Input Voltage: 26 – 55 Vdc
Output Voltage: 0.8 – 13.8 Vdc
Output Current Max.: 10 – 50 A
Efficiency: Up to 95%

Dimensions
per module:

Full-Chip: 1.28” x 0.87” x 0.265”
(32.5 x 22.0 x 6.73 mm)
Half-Chip: 0.87” x 0.65” x 0.265”
(22.0 x 16.5 x 6.73 mm)

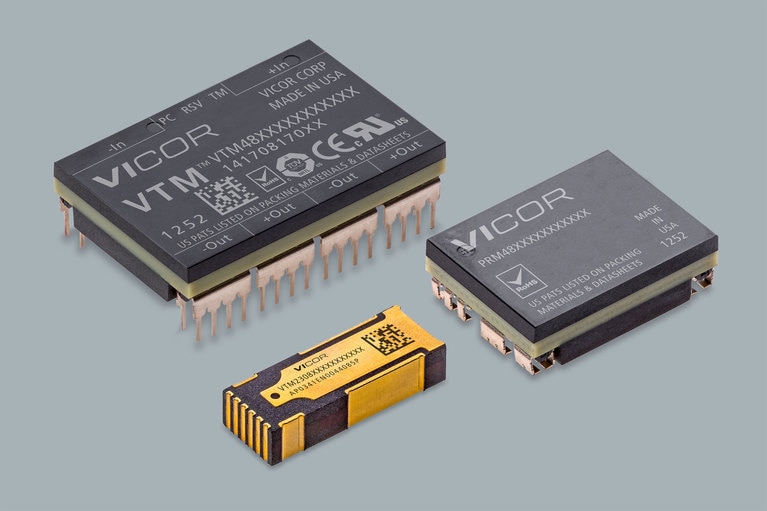

Full-Chip PRM

Non-isolated, regulator
320 W in 1.1 in² package
ZVS buck-boost topology
ZVS, >1 MHz switching frequency
Power density >1,100 W/in³

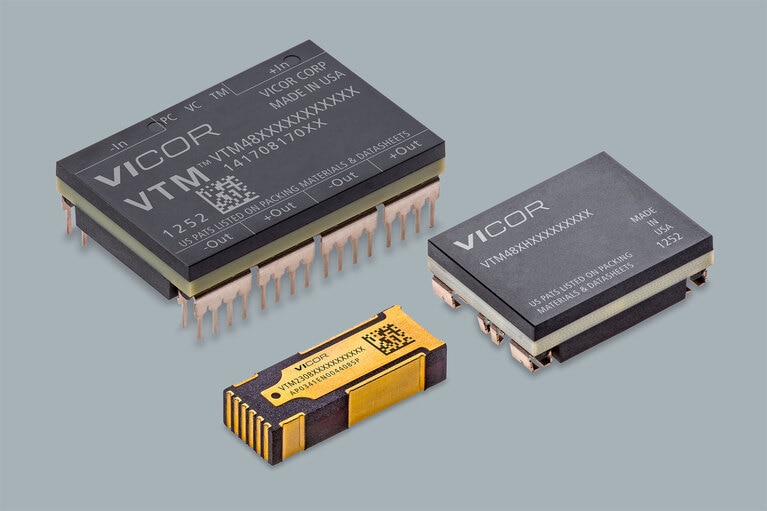

Full / Half-Chip VTM

Isolated, voltage transformer
Up to 130 A in 1.1 in²
ZVS, ZCS, >1 MHz switching frequency

The PRM is a very efficient non-isolated regulator capable of both boosting and bucking a wide range input voltage and provides a regulated, adjustable output voltage or "Factorized Bus". PRMs can be used stand-alone as non-isolated voltage regulators or combined with VTMs for a complete isolated, DC-DC solution with higher efficiency and power density. The VTM provides point-of-load, fixed ratio voltage transformation with extremely fast transient response and isolation to 2,250 Vdc. Additional features include:

Small footprint
Low weight
Bulk capacitance elimination
Through hole option available, except in half-chip package

Full-chip and half-chip models are compatible with standard pick-and-place and surface mount assembly processes.

Vicor's experienced Application Engineers are here to help.

Contact Customer Service:

For help with product selection and availability, placing an order and order status:

800-735-6200

Email: custserv@vicorpower.com

International Sales & Service »

Ask about our Express Order Program - Great for Prototype Samples!

Helps you optimize your design and accelerate the prototyping process

Contact Customer Service:

International Support Contacts

Email: custserv@vicorpower.com

Contact Sales / Customer Service »

Applications Engineering Support »

	Chinese Version	Japanese Version
AN:002 – PRM / VTM Parallel Operation »
AN:003 – Powering Multiple VTMs with a Single PRM »
AN:005 – FPA Printed Circuit Board Layout Guidelines »
AN:007 – Using VTMs as 26 – 55 V Input Bus Converters »
AN:009 – V•I Chip Soldering Recommendations »
AN:017 – RoHS-Compliant Through-hole V•I Chip Soldering Recommendations »
AN:018 – Providing a Constant Current for Powering LEDs using the PRM and VTM »
AN:024 — Accurate Point-of-Load Voltage Regulation Using Simple Adaptive Loop Feedback »

Whole Family PRM and VTM Shortform »

PRM Regulator
All PRM models are 48 V _OUT

Input Voltage (V)	Output Power (W)
Input Voltage (V)	120	170	240	320
24 (18 – 36)	P024F048T12AL	—	—	—
36 (18 – 60)	P036F048T12AL	—	—	—
45 (38 – 55)	—	P045F048T17AL	—	P045F048T32AL
48 (36 – 75)	P048F048T12AL	—	P048F048T24AL	—

28 V MIL-COTS PRM »

VTM Transformer
Output voltage range depends on selected upstream PRM regulator. All VTM models are 48 V _IN

Output Voltage (V)	Output Current (A)
Output Voltage (V)	0 – 15	20 – 40	50 – 80	100 +
1.2 (0.65 – 1.37)	—	—	—	VIV0005TFJ, 130 A
1.5 (0.81 – 1.72)	—	—	VIV0102THJ, 50 A	V048F015T100, 100 A VIV0007TFJ, 115 A
2 (1.08 – 2.29)	—	VIV0103THJ, 40 A	V048F020T080, 80 A	—
3 (1.63 – 3.43)	—	—	V048F030T070, 70 A	—
4 (2.17 – 4.58)	—	VIV0104THJ, 25 A	V048F040T050, 50 A	—
6 (3.25 – 6.87)	—	VIV0105THJ, 20 A V048F060T040, 40 A	—	—
8 (4.34 – 9.16)	—	V048F080T030, 30 A	—	—
9.6 (6.40 – 11)	—	V048F096T025, 25 A	—	—
12 (6.50 – 13.8)	VIV0101THJ, 10 A	V048F120T025, 25 A	—	—
16 (8.67 – 18.3)	V048F160T015, 15 A	—	—	—
24 (13.8 – 26.5)	V048F240T012, 12 A	—	—	—
32 (17.3 – 36.7)	V048F320T009, 9 A	—	—	—
48 (26 – 55)	V048F480T006, 6 A	—	—	—

MIL-COTS MV036 Series

The PRM Constant Current (CC) Demonstration Board is suitable for light-emitting diode (LED) applications such as street & stadium lighting, high-end projectors, active outdoor advertising and architectural installations. The board provides a precisely regulated current as required for direct drive multi-LED applications where the intensity and brightness are controlled by regulating the current through the LEDs.

The PRM CC board can be used to provide adjustable current up to 240 W (5 A at 48 V) when employed as a standalone non–isolated source or can be combined with a range of VTM™ voltage transformers to provide an adjustable isolated current up to 100 A.

The board has Kelvin connections for measuring the efficiency of the V•I Chip components independent of load losses. Oscilloscope probe jacks are available for measuring output voltage, including output voltage ripple. The board is equipped with fused PRM inputs, system enable and disable, and option for mounting a V•I Chip pushpin heat sink. For more details, see the Constant Current (CC) Demonstration Board User’s Guide (UG: 007) and Application Note:018, Providing a Constant Current for Powering LEDs using the PRM and VTM.

PRM Constant Current (CC) Demonstration Board
Click img. to enlarge	Model Number	Input Voltage (V)	Output Voltage (V)	Output Power (W)

	P048F048T24AL-CC	36 – 75	26 – 55	240

VTM Customer Evaluation Board
Click img. to enlarge		Model Number	Input Voltage (V)	Output Voltage (V)	Output Current (A)

	VIV0005TFJ-CB		26 – 55	0.65 – 1.37	130
	VIV0007TFJ-CB		26 – 55	0.81 – 1.71	115
	V048F015T100-CB		26 – 55	0.82 – 1.71	100
	V048F020T080-CB		26 – 55	1.09 – 2.29	80
	V048F030T070-CB		26 – 55	1.63 – 3.43	70
	VIV0102THJ-CB		26 – 55	0.81 – 1.72	50
	V048F040T050-CB		26 – 55	2.17 – 4.58	50
	VIV0103THJ-CB		26 – 55	1.08 – 2.29	40
	V048F060T040-CB		26 – 55	3.25 – 6.87	40
	V048F080T030-CB		26 – 55	4.34 – 9.16	30
	VIV0104THJ-CB		26 – 55	2.17 – 4.58	25
	V048F096T025-CB		32 – 55	6.4 – 11.0	25
	V048F120T025-CB		26 – 55	6.5 – 13.8	25
	V048F120T025-CB		26 – 48	3.25 – 6.0	20
	VIV0105THJ-CB		26 – 55	8.67 – 18.3	15
	V048F240T012-CB		28 – 53	13.8 – 26.5	12
	VIV0101THJ-CB		26 – 55	6.5 – 13.8	10
	V048F320T009-CB		26 – 55	17.3 – 36.7	9
	V048F480T006-CB		26 – 55	26.0 – 55.0	6

UG:003 – PRM / VTM Evaluation Board User Guide »

UG:007 – Constant Current (CC) Demonstration Board User Guide »

The PRM and VTM Customer Evaluation Boards allow the user to develop an understanding of Factorized Power Architecture (FPA™) using the PRM and VTM chip set. Simply select the PRM Evaluation Board to match your input voltage and VTM Evaluation Board to provide the desired output voltage and current and plug them together.

The customer evaluation boards are equipped with test sockets, trim pots, and convenient input and output connections to allow the user to fully explore the capabilities of the PRM and VTM. A detailed User Guide is available.

PRM Customer Evaluation Board
Click img. to enlarge	Model Number	Input Voltage (V)	Output Voltage (V)	Output Power (W)

	P048F048T12AL-CB	36 – 75	26 – 55	120
	P036F048T12AL-CB	18 – 60	26 – 55	120
	P024F048T12AL-CB	18 – 36	26 – 55	120
	P045F048T17AL-CB	38 – 55	26 – 55	170
	P048F048T24AL-CB	36 – 75	26 – 55	240
	P045F048T32AL-CB	38 – 55	26 – 55	320

VTM Customer Evaluation Board
Click img. to enlarge		Model Number	Input Voltage (V)	Output Voltage (V)	Output Current (A)

	VIV0005TFJ-CB		26 – 55	0.65 – 1.37	130
	VIV0007TFJ-CB		26 – 55	0.81 – 1.71	115
	V048F015T100-CB		26 – 55	0.82 – 1.71	100
	V048F020T080-CB		26 – 55	1.09 – 2.29	80
	V048F030T070-CB		26 – 55	1.63 – 3.43	70
	VIV0102THJ-CB		26 – 55	0.81 – 1.72	50
	V048F040T050-CB		26 – 55	2.17 – 4.58	50
	VIV0103THJ-CB		26 – 55	1.08 – 2.29	40
	V048F060T040-CB		26 – 55	3.25 – 6.87	40
	V048F080T030-CB		26 – 55	4.34 – 9.16	30
	VIV0104THJ-CB		26 – 55	2.17 – 4.58	25
	V048F096T025-CB		32 – 55	6.4 – 11.0	25
	V048F120T025-CB		26 – 55	6.5 – 13.8	25
	V048F120T025-CB		26 – 48	3.25 – 6.0	20
	VIV0105THJ-CB		26 – 55	8.67 – 18.3	15
	V048F240T012-CB		28 – 53	13.8 – 26.5	12
	VIV0101THJ-CB		26 – 55	6.5 – 13.8	10
	V048F320T009-CB		26 – 55	17.3 – 36.7	9
	V048F480T006-CB		26 – 55	26.0 – 55.0	6

	All V•I Chips are RoHS Compatible
Full-Chip PRM
Click img. to enlarge	Description	Lead Type	Product Outline Drawing	3-D Model Drawing
	Full-Chip PRM with J-Lead mounting	J-Lead	PDF \| DXF	IGS \| SAT \| STP
	Full-Chip PRM with through-hole mounting	Through-Hole	PDF \| DXF	IGS \| SAT \| STP

Full-Chip VTM
	Full-Chip VTM with J-Lead mounting (>100 Amp)	J-Lead	PDF \| DXF	IGS \| SAT \| STP
	Full-Chip VTM with J-Lead mounting	J-Lead	PDF \| DXF	IGS \| SAT \| STP
	Full-Chip VTM with through-hole mounting	Through-Hole	PDF \| DXF	IGS \| SAT \| STP

Half-Chip VTM
	Half-Chip VTM with J-Lead mounting	J-Lead	PDF \| DXF	IGS \| SAT \| STP

To order mechanical samples, please contact your local customer service representative.

Click img. to enlarge	Description	Part Number
	Full-Chip PRM with J-Leads	VIZ0006

	Full-Chip VTM with J-Leads	VIZ0007

	Half-Chip VTM with J-Leads	VIZ0012

Full-Chip PRM	cURus – UL 60950-1, CSA 60950-1 cTÜVus – EN 60950-1, UL 60950-1, CSA 60950-1 CE Marked – Low Voltage Directive (2006/95/EC) CB Certificate – IEC 60950-1:2005

Full- Chip VTM	cURus – UL 60950-1, CSA 60950-1 cTÜVus – EN 60950-1, UL 60950-1, CSA 60950-1 CE Marked – Low Voltage Directive (2006/95/EC) CB Certificate – IEC 60950-1:2001

Half -Chip VTM	cURus – UL 60950-1, CSA 60950-1 cTÜVus – EN 60950-1, UL 60950-1, CSA 60950-1 CE Marked – Low Voltage Directive (2006/95/EC) CB Certificate – IEC 60950-1:2001

130 / 115 A VTM	cURus – UL 60950-1, CSA 60950-1 cTÜVus – EN 60950-1, UL 60950-1, CSA 60950-1 CE Marked – Low Voltage Directive (2006/95/EC) CB Certificate – IEC 60950-1:2005

	Chinese Version	Japanese Version
FPA Overview: An Introduction to FPA »
Enabling Next Generation High-Density Power Conversion »
High Current, Low Voltage Solution For Microprocessor Applications from 48 V Input »
Datacenter Power Delivery Architectures: Efficiency and Annual Operating Costs »
Efficient Power Conversion Solutions »
Dual-Stage Feedback Technique for Single-Pole Feedback Compensation »

QPI V•I Chip-Family Data Sheet – Universal Active ORing Controller IC
QPI-9LZ Data Sheet – 6 Amp EMI Filter, with integrated Hot-Swap for 24 V V•I Chip products
QPI-10LZ Data Sheet – 6 Amp EMI Filter, with integrated Hot-Swap for 48 V V•I Chip products
QPI-11LZ Data Sheet – 7 Amp V•I Chip EMI Filter for 24 V V•I Chip products
QPI-12LZ Data Sheet – 7 Amp V•I Chip EMI Filter for 48 V V•I Chip products

QPI-9-CB1 Carrier Board – Compatible with 24 V Input V•I Chip “-CB” Boards, up to 6 Amps
QPI-10-CB1 Carrier Board – Compatible with 48 V Input V•I Chip “-CB” Boards, up to 6 Amps
QPI-11-CB1 Carrier Board – Compatible with 24 V Input V•I Chip Module “-CB” Boards, up to 7 Amps
QPI-12-CB1 Carrier Board – Compatible with 48 V input V•I Chip Module “-CB” Boards, up to 7 Amps

For Full-Chip PRM / VTM

All Heat Sinks are RoHS Compatible

Click img. to enlarge

Height of Fins

Part Number

Product Assembly Drawing

Product Outline Drawing

3-D Model Drawing

Tranverse Fins (push pins not included)

11 mm

34072

PDF

PDF | DXF

IGS | SAT | STP

6.3 mm

34073

PDF

PDF | DXF

IGS | SAT | STP

Longitudinal Fins (push pins not included)

11 mm

34074

PDF

PDF | DXF

IGS | SAT | STP

6.3 mm

34075

PDF

PDF | DXF

IGS | SAT | STP

For Half-Chip VTM

All Heat Sinks are RoHS Compatible

Click img. to enlarge

Height of Fins

Part Number

Product Assembly Drawing

Product Outline Drawing

3-D Model Drawing

Tranverse Fins (push pins not included)

11 mm

32784

PDF

PDF | DXF

IGS | SAT | STP

6.3 mm

32786

PDF

PDF | DXF

IGS | SAT | STP

Longitudinal Fins (push pins not included)

11 mm

32783

PDF

PDF | DXF

IGS | SAT | STP

6.3 mm

32785

PDF

PDF | DXF

IGS | SAT | STP

To order mechanical samples, please contact your local customer service representative.

Click img. to enlarge	Description	Part Number
	Full-Chip PRM with J-Leads	VIZ0006

	Full-Chip VTM with J-Leads	VIZ0007

	Half-Chip VTM with J-Leads	VIZ0012

All Push Pins are RoHS Compatible

Click img. to enlarge

Size of Pins

Part Number

Product Outline Drawing

For Full-Chip PRM and VTM

0.051"–0.069" PCB

32434

PDF

0.070"–0.104" PCB

32435

PDF

0.105"–0.132" PCB

32436

PDF

0.133"–0.156" PCB

32437

PDF

For Half-Chip VTM

0.051"–0.069" PCB

33622

PDF

0.070"–0.104" PCB

33623

PDF

0.105"–0.132" PCB

33624

PDF

0.133"–0.156" PCB

33625

PDF
