MIL-COTS M-FIAM™
Filter Input Attenuator Module


Description

The M-FIAM is a DC front-end module that provides EMI filtering and transient protection. The M-FIAM line of products enables designers using Vicor's 24, 28 or 300 VIN Maxi, Mini, Micro DC-DC converters or 28 VIN MIL-COTS VI Chip modules to meet conducted emission/conducted susceptibility per MIL-STD-461E and input transient surges per MIL-STD-704 or MIL-STD-1275. In addition, the MVA-FIAM5B and MVA-FIAM9 offers designers using the M-FIAM5B or M-FIAM9 the capability of coldplate mounting with convenient input and output connectors.

Specifications
Input Voltages   24 / 28 V
270 / 300 V
Output Current   Up to 25 A
Transient Compliance   MIL-STD-704
MIL-STD-1275
DO-160
Dimensions

M-FIAM :
2.28 x 2.20 x 0.50 in
57.9 x 55.9 x 12.7 mm

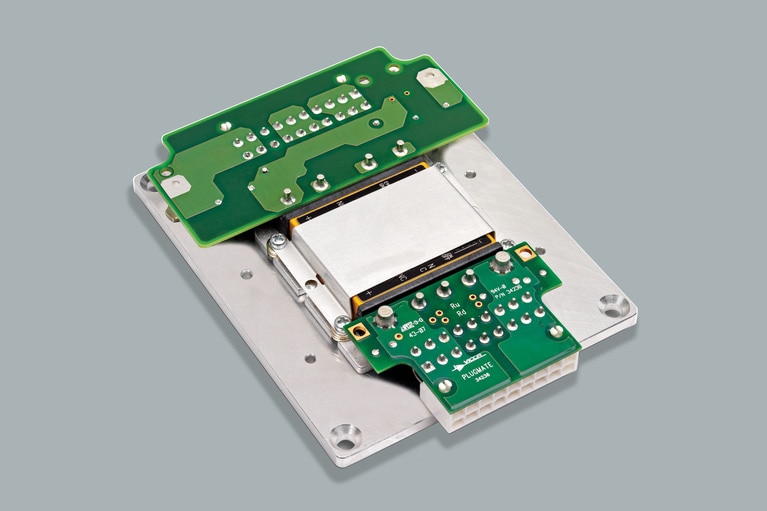

MVA-FIAM :
4.69 x 3.62 x 0.81 in
119.4 x 92.0 x 20.6 mm



Find

Compatible Converters

The MILCOTS M-FIAM – Filter Input Attenuator Module – works in conjunction with a specific set of Vicor converters to deliver optimal efficiency, power and protection.

To easily view the appropriate converter components needed for the desired MILCOTS M-FIAM please use the PowerBench Solution Selector tool to locate compatible offerings.


Part Number
Filter Column
Input Voltage (V)
Filter Column
Output Current (A)
Filter Column
Transient Compliance
Filter Column
Module Compatibility
Filter Column
Dimensions
M-FIAM3 180 – 375 3 MIL-STD-704E/F 300 Vin Maxi, Mini, Micro 2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm
M-FIAM5B 14 – 36 20 MIL-STD-704E/F 24/28 Vin Maxi, Mini, Micro 2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm
M-FIAM7 14 – 50 10 MIL-STD-704A-F
MIL-STD1275A/B/D, DO-160E
28 Vin MIL-COTS VI Chips 2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm
M-FIAM7B 14 – 50 25 MIL-STD-704A-F
MIL-STD1275A/B/D, DO-160E
28 Vin MIL-COTS VI Chips 2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm
M-FIAM9 10 – 36 18 MIL-STD-704A-F
MIL-STD1275A/B/D
24/28 Vin Maxi,
Mini, Micro 2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm
MVA-FIAM5B 14 – 36 20 MIL-STD-704E/F 24/28 Vin Maxi, Mini, Micro 4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm
MVA-FIAM9 10 – 36 18 MIL-STD-704A-F
MIL-STD1275A/B/D
24/28 Vin Maxi,
Mini, Micro 4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm
1     7 products
Features & Benefits
  • Various transient compliance
  • MIL-STD-461 EMI compliance
  • Inrush current limiting
  • Low profile mounting option
Diagram

The FIAM family of front-end modules provides EMI filtering, transient protection, and inrush current limiting in DC-DC applications. The FIAM enables designer using Vicor Maxi, Mini, and Micro DC-DC converters, and in select cases V•I Chip based devices, to meet the transient immunity and EMI requirements of the standards referenced in the respective model datasheet.



Click image to enlarge.



Documentation



Data Sheets

PDFM-FIAM3 Data Sheet »

PDFM-FIAM5B Data Sheet »

PDFM-FIAM7 Data Sheet »

PDFM-FIAM7B Data Sheet »

PDFM-FIAM9 Data Sheet »

PDFMVA-FIAM5B Data Sheet »

PDFMVA-FIAM9 Data Sheet »


Application Note

PDFFIAM Application Note »



Design Guide / Application Manual

Download Entire Manual
PDFMaxi, Mini, Micro Design Guide and Applications Manual


Download Individual Chapters

PDF 1. High Density DC-DC Converter Technology »

PDF 2. Control Pin Functions and Applications »

PDF 3. Design Requirements »

PDF 4. EMC Considerations »

PDF 5. Current Sharing in Power Arrays »

PDF 6. Thermal Performance Information »


Accessory Modules

PDF 7. Autoranging Rectifier Module (ARM) »

PDF 8. Filter / Autoranging Rectifier Module (FARM) »

PDF 9. Modular AC Front-end System (ENMod) »

PDF 10. High Boost HAM »

PDF 11. Filter Input Attenuator Module (FIAM) »

PDF 12. Output Ripple Attenuator Module (MicroRAM) »


Recommended Soldering Methods

PDF 13. Lead Free Pins (RoHS) »

PDF 14. Tin Lead Pins »


Mounting Options

PDF 15. Surface Mount Socketing System (SurfMate) »

PDF 16. Through-hole Socket-mount System (InMate) »

PDF 17. Glossary of Technical Terms »



Safety Approvals

PDFM-FIAM3 – CE Marked – Low Voltage Directive (2006/95/EC) and RoHS Recast Directive (2011/65/EU) »

PDFM-FIAM5B – CE Marked – Low Voltage Directive (2006/95/EC) and RoHS Recast Directive (2011/65/EU) »

PDFM-FIAM7 – CE Marked – Low Voltage Directive (2006/95/EC) and RoHS Recast Directive (2011/65/EU) »

PDFM-FIAM7B – CE Marked – Low Voltage Directive (2006/95/EC) and RoHS Recast Directive (2011/65/EU) »

PDFM-FIAM9 – CE Marked – Low Voltage Directive (2006/95/EC) and RoHS Recast Directive (2011/65/EU) »


MI Series Stress Screening

PDFMIL-STD-810 Environments »



Packaging Options

Drawing       Description
Number

25006            PDFOutline Drawing for FIAM Module »

25006            DXFOutline Drawing for FIAM Module »

25335            PDFOutline Drawing for MVA-FIAM9 »

25335            DXFOutline Drawing for MVA-FIAM9 »



Related Products
DC-DC Converters
VI-200, VI-J00 Family   Go
Maxi, Mini, Micro Family   Go


Accessories


Capacitors


X-Cap
(Capacitance)
  Part
Number
  Vendor
Part Number
  Voltage Rating







  Technical Drawing
0.22 µF   04068   F1772-422-2000   250 Vac                   PDF   Add to Cart


Back to Top



Y-Cap
(Capacitance)
  Part
Number
  Vendor
Part Number
  Voltage
Rating








  Technical Drawing
0.01 μF   33643   F1710-310-1000   250 V                   PDF   Add to Cart


Back to Top



Y-Cap
Surface Mount

(Capacitance)
  Part
Number
  Vendor
Part Number
  RoHS
Compliant
  Voltage Rating





  Technical Drawing
4,700 pF   25283   P101AA472M250V   Yes   250 Vac               PDF   Add to Cart


Back to Top



MOVs


Description   Part
Number
  Vendor
Part Number
  Voltage
Rating








  Technical Drawing
10 mm Disc   30234-120   ERZV10D121   120 V                   PDF   Add to Cart
Transorb, SMC   19180-510   1.5SMC51AT3G   51 V                   PDF   Add to Cart


Back to Top



EMI Shielding


Mini-size Shield   Part
Number
  Module
Style






  Technical Drawing
For Slotted Baseplate   30198   Mini                       PDF   Add to Cart
                      DXF
For Threaded or
Through hole Baseplate
  30180   Mini                       PDF   Add to Cart
                      DXF


Back to Top



Fuses


Fuse
(Current Rating)
  Part
Number
  Vendor
Part Number
  Voltage Rating







  Technical Drawing
10 A   30247   BK1/MCRW10A   125 V                   PDF   Add to Cart


Back to Top



LugMates


LugMates listed in the table below are for use with Vicor Mini-size modules.
These heat sinks are NOT for use with Vicor V1-J00-size modules.
Description   Part
Number
  Module Style





  Technical Drawing
For use with
Mini-size modules
  23466   Mini                       PDF   Add to Cart



Back to Top



Sockets


JPG Example SurfMate Application  »
SurfMate
Sockets
  Part
Number
  Mounting
Style
  Module Style   Pin
Style
  Board
Thickness
      Assembly Drawing   Technical Drawing
Set
(5) Input, (5) Ouput
  16021   Surface   Mini   Short RoHS (Gold)   All       PDF   PDF   Add to Cart
              DXF   DXF
Input Only
(35) Pieces
  22100   Surface   Mini   Short RoHS (Gold)   All               Add to Cart
Output Only
(35) Pieces
  22102   Surface   Mini   Short RoHS (Gold)   All               Add to Cart


Back to Top



For InMate headers, all sockets are supplied to assure proper alignment during installation.
JPGExample Inboard Mounting »
JPGExample Onboard Mounting »

InMate
Sockets
  Part
Number
  Mounting
Style
  Module
Style
  Pin
Style
  Board
Thickness

(Nominal)
  Board
Thickness

(Min/Max)
      Technical Drawing
Set
(5) Input, (5) Ouput
  18366   Inboard   Mini   Short RoHS (Gold)   0.063"   0.055" / 0.071"       PDF   Add to Cart
                DXF
Input Only
(35) Pieces
  18374   Inboard   Mini   Short RoHS (Gold)   0.063"   0.055" / 0.071"           Add to Cart
Output Only
(35) Pieces
  18384   Inboard   Mini   Short RoHS (Gold)   0.063"   0.055" / 0.071"           Add to Cart
Set
(5) Input, (5) Ouput
  18368   Onboard   Mini   Long RoHS (Gold)   0.063"   0.055" / 0.071"       PDF   Add to Cart
                DXF
Input Only
(35) Pieces
  18378   Onboard   Mini   Long RoHS (Gold)   0.063"   0.055" / 0.071"           Add to Cart
Output Only
(35) Pieces
  18390   Onboard   Mini   Long RoHS (Gold)   0.063"   0.055" / 0.071"           Add to Cart
Set
(5) Input, (5) Ouput
  18367   Inboard   Mini   Short RoHS (Gold)   0.094"   0.084" / 0.104"       PDF   Add to Cart
                DXF
Input Only
(35) Pieces
  18375   Inboard   Mini   Short RoHS (Gold)   0.094"   0.084" / 0.104"           Add to Cart
Output Only
(35) Pieces
  18385   Inboard   Mini   Short RoHS (Gold)   0.094"   0.084" / 0.104"           Add to Cart
Set
(5) Input, (5) Ouput
  18369   Onboard   Mini   Long RoHS (Gold)   0.094"   0.084" / 0.104"       PDF   Add to Cart
                DXF
Input Only
(35) Pieces
  18379   Onboard   Mini   Long RoHS (Gold)   0.094"   0.084" / 0.104"           Add to Cart
Output Only
(35) Pieces
  18391   Onboard   Mini   Long RoHS (Gold)   0.094"   0.084" / 0.104"           Add to Cart
Set
(5) Input, (5) Ouput
  21511   Onboard   Mini   Long RoHS (Gold)   0.125"   0.1125" / 0.1375"       PDF   Add to Cart
                DXF
Input Only
(35) Pieces
  21539   Onboard   Mini   Long RoHS (Gold)   0.125"   0.1125" / 0.1375"           Add to Cart
Output Only
(35) Pieces
  21544   Onboard   Mini   Long RoHS (Gold)   0.125"   0.1125" / 0.1375"           Add to Cart


Back to Top



Socket Extraction Tool


Module
Exchange Tool
  Part
Number
  Module
Style
                      Technical Drawing
Used to facilitate the proper extraction of Mini modules from InMate or SurfMate sockets.   22828   Mini                         Add to Cart


Back to Top



Standoffs


Mini and Micro modules require a minimum of four Standoffs.
Bags of (100) Standoffs do not include screws; #4-40 thread hardware required.
PDFSolder Mounting Design Information »

Standoffs for
Solder Mounted Modules
  Part
Number
  Mounting
Style
  Baseplate
Style
  Heat Sink   Pin
Style
  Board
Thickness
      Technical Drawing
Kit
(6) Standoffs
(6) Screws
  18150   Inboard   Slotted   Through hole   Short (Tin/Lead), or
Short RoHS (Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19126   Inboard   Slotted   Through hole   Short (Tin/Lead), or
Short RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18151   Inboard   Slotted   Threaded   Short (Tin/Lead), or
Short RoHS (Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19127   Inboard   Slotted   Threaded   Short (Tin/Lead), or
Short RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18146   Inboard   Through hole   Through hole   Short (Tin/Lead), or
Short RoHS (Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19122   Inboard   Through hole   Through hole   Short (Tin/Lead), or
Short RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18147   Inboard   Through hole   Threaded   Short (Tin/Lead), or
Short RoHS
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19123   Inboard   Through hole   Threaded   Short (Tin/Lead), or
Short RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18146   Inboard   Threaded   Though hole   Short (Tin/Lead), or
Short RoHS
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19122   Inboard   Threaded   Through hole   Short (Tin/Lead), or
Short RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18156   Onboard   Slotted   Though hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19132   Onboard   Slotted   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18157   Onboard   Slotted   Threaded   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19133   Onboard   Slotted   Threaded   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18150   Onboard   Through hole   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19126   Onboard   Through hole   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18152   Onboard   Through hole   Threaded   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19128   Onboard   Through hole   Threaded   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18150   Onboard   Threaded   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19126   Onboard   Threaded   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18150   Inboard   Slotted   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19126   Inboard   Slotted   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18151   Inboard   Slotted   Threaded   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19127   Inboard   Slotted   Threaded   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18146   Inboard   Through hole   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19122   Inboard   Through hole   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18147   Inboard   Through hole   Threaded   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19123   Inboard   Through hole   Threaded   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18146   Inboard   Threaded   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19122   Inboard   Threaded   Through hole   Long (Tin/Lead), or
Long RoHS
(Gold)
  0.093"           Add to Cart


Back to Top



Mini and Micro modules require a minimum of four Standoffs.
Bags of (100) Standoffs do not include screws; #4-40 thread hardware required.
PDFInMate Mounting Design Information »

Standoffs for
InMate Mounted Modules
  Part
Number
  Mounting
Style
  Baseplate
Style
  Heat
Sink
  Pin
Style


Board
Thickness

      Technical Drawing
Kit
(6) Standoffs
(6) Screws
  18153   Inboard   Slotted   Through hole   Short ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19129   Inboard   Slotted   Through hole   Short ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18154   Inboard   Slotted   Threaded   Short ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19130   Inboard   Slotted   Threaded   Short ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18148   Inboard   Through hole   Through hole   Short ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19124   Inboard   Through hole   Through hole   Short ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18149   Inboard   Through hole   Threaded   Short ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19125   Inboard   Through hole   Threaded   Short ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18148   Inboard   Threaded   Through hole   Short ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19124   Inboard   Threaded   Through hole   Short ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18158   Onboard   Slotted   Through hole   Long ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19134   Onboard   Slotted   Through hole   Long ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18159   Onboard   Slotted   Threaded   Long ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19135   Onboard   Slotted   Threaded   Long ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18153   Onboard   Through hole   Through hole   Long ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19129   Onboard   Through hole   Through hole   Long ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18155   Onboard   Through hole   Threaded   Long ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19131   Onboard   Through hole   Threaded   Long ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18153   Onboard   Threaded   Through hole   Long ModuMate
(Gold)
  0.063"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19129   Onboard   Threaded   Through hole   Long ModuMate
(Gold)
  0.063"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18153   Inboard   Slotted   Through hole   Short ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19129   Inboard   Slotted   Through hole   Short ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18154   Inboard   Slotted   Threaded   Short ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19130   Inboard   Slotted   Threaded   Short ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18148   Inboard   Through hole   Through hole   Short ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19124   Inboard   Through hole   Through hole   Short ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18149   Inboard   Through hole   Threaded   Short ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19125   Inboard   Through hole   Threaded   Short ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18148   Inboard   Threaded   Through hole   Short ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19124   Inboard   Threaded   Through hole   Short ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18156   Onboard   Slotted   Through hole   Long ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19132   Onboard   Slotted   Through hole   Long ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18157   Onboard   Slotted   Threaded   Long ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19133   Onboard   Slotted   Threaded   Long ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18150   Onboard   Though hole   Through hole   Long ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19126   Onboard   Though hole   Through hole   Long ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18152   Onboard   Though hole   Threaded   Long ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19128   Onboard   Though hole   Threaded   Long ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18150   Onboard   Threaded   Through hole   Long ModuMate
(Gold)
  0.093"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19126   Onboard   Threaded   Through hole   Long ModuMate
(Gold)
  0.093"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  24054   Onboard   Slotted   Through hole   Long ModuMate
(Gold)
  0.125"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19132   Onboard   Slotted   Through hole   Long ModuMate
(Gold)
  0.125"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18157   Onboard   Slotted   Threaded   Long ModuMate
(Gold)
  0.125"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19133   Onboard   Slotted   Threaded   Long ModuMate
(Gold)
  0.125"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  24056   Onboard   Through hole   Through hole   Long ModuMate
(Gold)
  0.125"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19126   Onboard   Through hole   Through hole   Long ModuMate
(Gold)
  0.125"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  18152   Onboard   Through hole   Threaded   Long ModuMate
(Gold)
  0.125"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19128   Onboard   Through hole   Threaded   Long ModuMate
(Gold)
  0.125"           Add to Cart
Kit
(6) Standoffs
(6) Screws
  24056   Onboard   Threaded   Through hole   Long ModuMate
(Gold)
  0.125"       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  19126   Onboard   Threaded   Through hole   Long ModuMate
(Gold)
  0.125"           Add to Cart


Back to Top



Mini and Micro modules require a minimum of four Standoffs.
Bags of (100) Standoffs do not include screws; #4-40 thread hardware required.
PDFSurface Mounting Design Information »

Standoffs for
SurfMate Mounted Modules
  Part
Number
  Mounting
Style
  Baseplate
Style
  Heat
Sink
  Pin
Style
  Board
Thickness
      Technical Drawing
Kit
(6) Standoffs
(6) Screws
  20178   Surface   Slotted   Through hole   Short ModuMate (Gold)   All       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  20188   Surface   Slotted   Through hole   Short ModuMate (Gold)   All           Add to Cart
Kit
(6) Standoffs
(6) Screws
  20179   Surface   Slotted   Threaded   Short ModuMate (Gold)   All       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  20189   Surface   Slotted   Threaded   Short ModuMate (Gold)   All           Add to Cart
Kit
(6) Standoffs
(6) Screws
  20176   Surface   Through hole   Through hole   Short ModuMate (Gold)   All       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  20186   Surface   Through hole   Through hole   Short ModuMate (Gold)   All           Add to Cart
Kit
(6) Standoffs
(6) Screws
  20177   Surface   Through hole   Threaded   Short ModuMate (Gold)   All       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  20187   Surface   Through hole   Threaded   Short ModuMate (Gold)   All           Add to Cart
Kit
(6) Standoffs
(6) Screws
  20176   Surface   Threaded   Through hole   Short ModuMate (Gold)   All       PDF   Add to Cart
                DXF
Bag
(100) Standoffs
(0) Screws
  20186   Surface   Threaded   Through hole   Short ModuMate (Gold)   All           Add to Cart


Back to Top



Thermal Management


Heat Sinks listed in the table below are for use with Vicor Mini-size modules.
These heat sinks are NOT for use with Vicor V1-J00-size modules.
TOOLHeat Sink Thermal Data and Calculator »


Heat Sinks
Longitudinal Fins

  Part
Number
  Mounting
Style
                      Technical Drawing
0.40"   32188   Threaded   Mini   Not for use with threaded baseplates   PDF   Add to Cart
          DXF
0.90"   30189   Threaded   Mini   Not for use with threaded baseplates   PDF   Add to Cart
          DXF
0.40"   30195   Through hole   Mini                   PDF   Add to Cart
                      DXF
0.90"   30182   Through hole   Mini                   PDF   Add to Cart
                      DXF


Back to Top



Heat Sinks listed in the table below are for use with Vicor Mini-size modules.
These heat sinks are NOT for use with Vicor V1-J00-size modules.
TOOLHeat Sink Thermal Data and Calculator »

Heat Sinks
Transverse Fins
  Part
Number
  Mounting
Style
  Module
Style
                  Technical Drawing
0.40"   30184   Threaded   Mini   Not for use with threaded baseplates   PDF   Add to Cart
          DXF
0.90"   30269   Threaded   Mini   Not for use with threaded baseplates   PDF   Add to Cart
          DXF
0.40"   30721   Through hole   Mini                   PDF   Add to Cart
                      DXF
0.90"   30724   Through hole   Mini                   PDF   Add to Cart
                      DXF


Back to Top



Heat Sinks listed in the table below are for use with Vicor Mini-size modules.
These heat sinks are NOT for use with Vicor V1-J00-size modules.
TOOLHeat Sink Thermal Data and Calculator »

Heat Sinks
Low-Profile
Side-Fin
  Part
Number
  Module
Style
  Height                   Technical Drawing
0.55"   32190   Mini   0.125" above module baseplate       PDF   Add to Cart



Back to Top



Thermal Pads listed in the table below are for use with Vicor Mini-size modules.
These Thermal Pads are NOT for use with V1-J00-size modules.
ThermMate
Thermal Pads
  Part
Number
  Module
Style
                      Technical Drawing
0.007"   20264   Mini                       PDF   Add to Cart
                      DXF


Back to Top
