DCM9223AD2K36K0T00 | DCM® DC-DC Converter Module | Vicor

DCM9223AD2K36K0T00 in the product family

DCM® DC-DC Converter Module

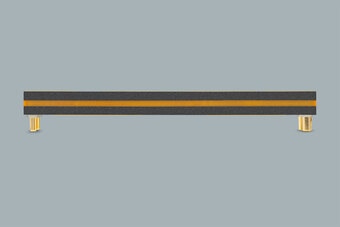

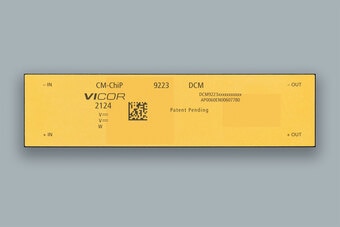

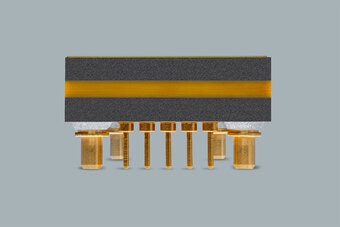

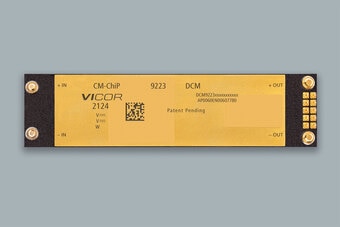

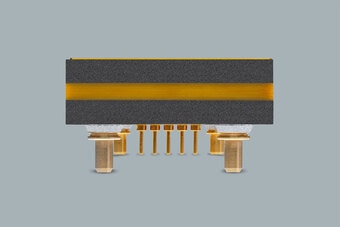

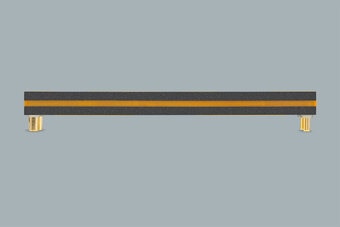

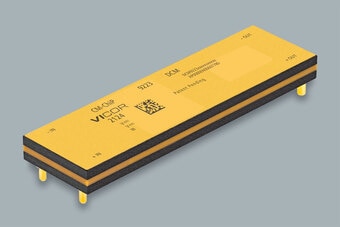

Pin-Mount CM-ChiPTM Package
3.63 x 0.91 x 0.29 in / 92.2 x 23.1 x 7.5 mm
DCM9223AD2K36K0T00 in the product family

DCM® DC-DC Converter Module
Input Voltage 270V
Output Voltage 28V
Output Power 1000W
Pin-Mount CM-ChiPTM Package
3.63 x 0.91 x 0.29 in / 92.2 x 23.1 x 7.5 mm
Data Sheet
Error Message here
Order an evaluation board

Evaluation Board Users Guide

Option Graph Section

Options
No configuration options available
Part Number
DCM9223AD2K36K0T00

Product Features

Product features

  • Power density: 2572W/in3
  • 4242VDC isolation IN to OUT
  • OV, OC, UV, short circuit and OT protections
  • Parallel capability
  • Fully operational current limit
  • Two-sided thermally-adept CM-CHiPTM package
  • PMBus® and Analog control interface

Accordion Section

  • Product Outline Drawing
    PDF  DXF
  • 9223 CM ChiP Package
    STP
