なぜ高電力密度の電源ソリューションが必要か

なぜ高電力密度の電源ソリューションが必要か

防衛産業の設計者が常に抱えている課題として、”SWaP-C” ―サイズ(Size)、重量(Weight)、電力(Power)、費用(Cost)―の削減に加えて、”C4ISR”―コマンド(Command)、制御(Control)、通信(Communications)、計算(Computing)、インテリジェンス(Intelligence)、監視(Surveillance)、偵察(Reconnaissance)―の性能向上が挙げられます。この課題の中で優先順位をつけた場合、要求されるアプリケーションの信頼性、費用、製品化までの時間的制約などに対応しながらも、電力密度と性能を向上させるソリューションが求められるでしょう。

小さなスペースに大きな電力を供給

小さなスペースに大きな電力を供給

Vicorは、30年以上にわたって防衛産業用電源コンバータを提供してきた実績があります。その実績で得たロバスト性と信頼性によって、厳しいSWaP-C要件を満たす先進技術のMIL-COTSソリューションを提供し、電源業界の水準を引き上げてきました。高電力密度、軽量、低ノイズ、高信頼性のモジュール型コンポーネントを製品ラインアップに揃え、防衛産業ではSWaP-Cに最適化したソリューションを生み出しています。一例として、ChiPおよびVIAパッケージのDCMTMシリーズ(絶縁型、定電圧型DC-DCコンバータ)が挙げられますが、ブリックパッケージのソリューションと比較すると、体積あたりの電力密度が約2.5倍、重量あたりの電力密度が3倍以上も向上したソリューションを実現しています。

航空宇宙・防衛向けVicorソリューションの特長

航空宇宙・防衛向けVicorソリューションの特長

小さな実装面積

小さな実装面積

軽量

軽量

低ノイズ

低ノイズ

高信頼性

高信頼性

Award-winning supplier

L3 logo

Outstanding Quality Award 2017

BAE logo

Silver Supplier Award 2022

Raytheon logo

Supplier Excellence Award 2018

Military & Aerospace Electronics magazine logo

Technology Innovators Award 2020

Aerospace and defense applications

HALE UAV

High-efficiency, high-density DCM DC-DC converters double the internal bus power and keep the aircraft as light as possible.

High-performance modules provide a well-regulated 48V at more than 1kW to enable higher peak RF output power.

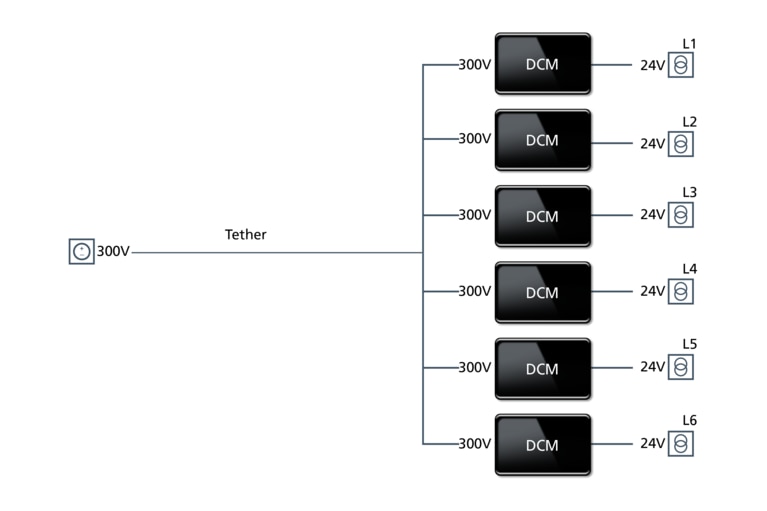

High voltage tethers allow for greater tether lengths, use smaller and lighter cabling and significantly reduce I2R losses.

Flexible, capable power delivery supports more functionality and affords UAVs increased payload and longer runtime.

Smaller, more efficient power solutions enable improved counter measure capabilities.

Powering your suite of advanced sensors delivering unparalleled results

Application examples

 Vicor is a 30-year veteran of the aerospace and defense industry. View our heritage applications

Modules for aerospace and defense applications

VPX systems

VITA62 power systems

VITA-62 compliant power converters

Input: 18 – 42V, 18 – 45V, 220 – 320V

Output: 12V, 5V, 3.3V, 12V, -12V

Power: 3U 600W, 6U 1000W

Full power to 85°C (at card edge)

As small as 3.9 x 6.6 x 0.95in

絶縁型レギュレータ - DC-DCコンバータ

MIL-COTS DCM family of modules

MIL-COTS DCM DC-DC converters

Input: 28, 30, 270V

Output: 3.3, 5, 12, 15, 24, 28, 48V

Power: Up to 1300W

Efficiency: Up to 96%

As small as 1.5 x 0.90 x 0.28in

MIL-COTS PRM and VTM modules

MIL-COTS PRM and VTM modules

Input: 14 – 50V, 38 – 55V

Output: 1.08 – 50V

Current: Up to 80A

Efficiency: Up to 96.5%

As small as 22.0 x 16.5 x 6.7mm (each)

非絶縁型レギュレータ

ZVS buck regulator

MIL-COS ZVS Buck regulators

Input: 12, 24 or 48V

Output: 1 – 16V

Current: Up to 22A

Peak efficiency: 98%

As small as 7 x 8 x 0.85mm

ZVS buck regulator

MIL-COTS ZVS buck-boost regulators

Input: 8 – 60V

Output: 10 – 50V

Power: Up to 141.6W continuous

Efficiency: Up to 96%

10.5 x 14.5 x 3.0mm

絶縁型電圧変換比固定

Vicor BCM modules

MIL-COTS BCM® bus converter modules

Input: 200 – 400V, 400 – 700V, 500 – 800V

Current: Up to 35A

Efficiency: Up to 98%

As small as 2.5 x 0.9 x 0.3in

フィルタ

MFM input filter

MIL-COTS MFM™ input filter for DCMs

Input: 28V, 270V

Output current: Up to 22A

Transient Compliance: MIL-STD-704, MIL-STD-1275, DO-160

1.8 x 1.4 x 0.4in
