DCM5614BD0H36K3T10 | DCM® DC-DC Converter Module | Vicor

DCM5614BD0H36K3T10 in the product family

DCM® DC-DC Converter Module

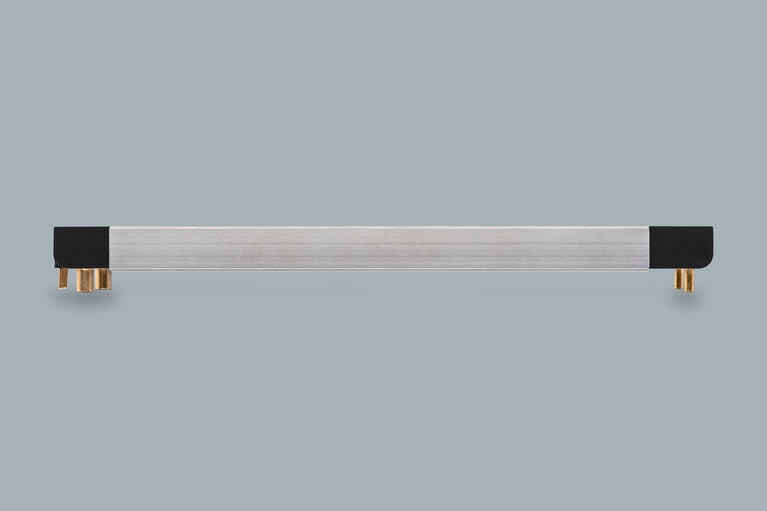

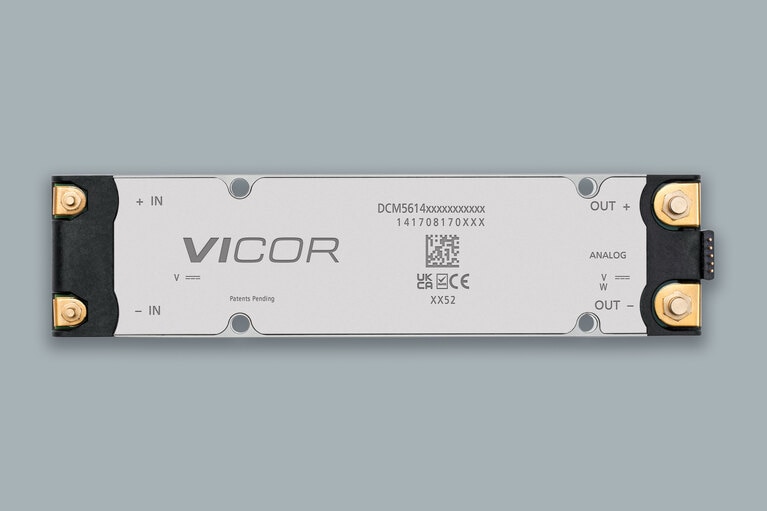

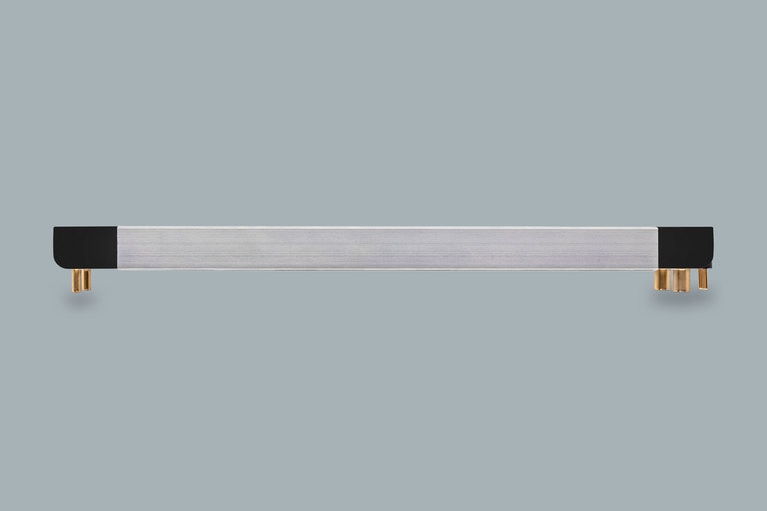

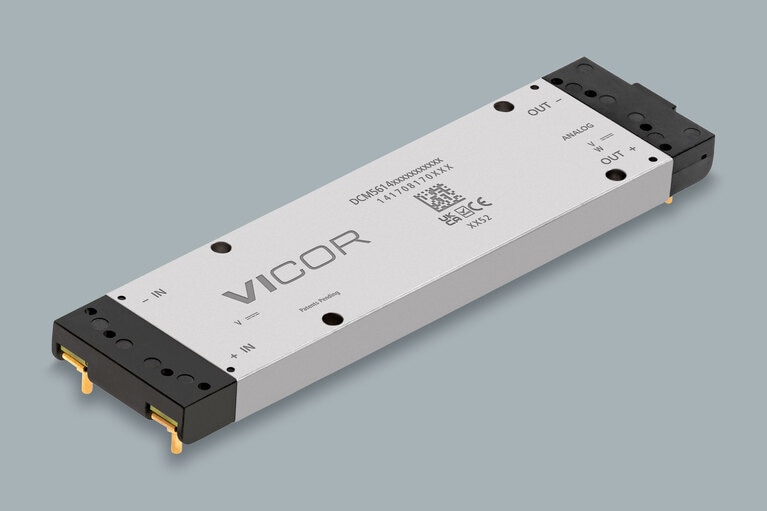

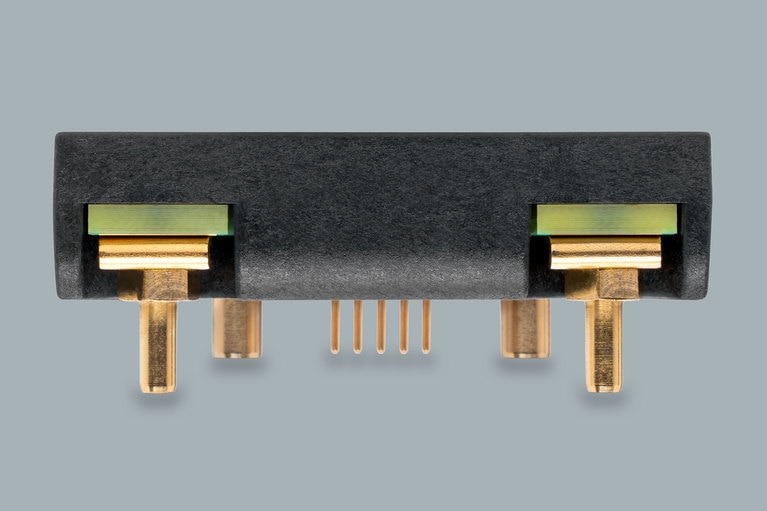

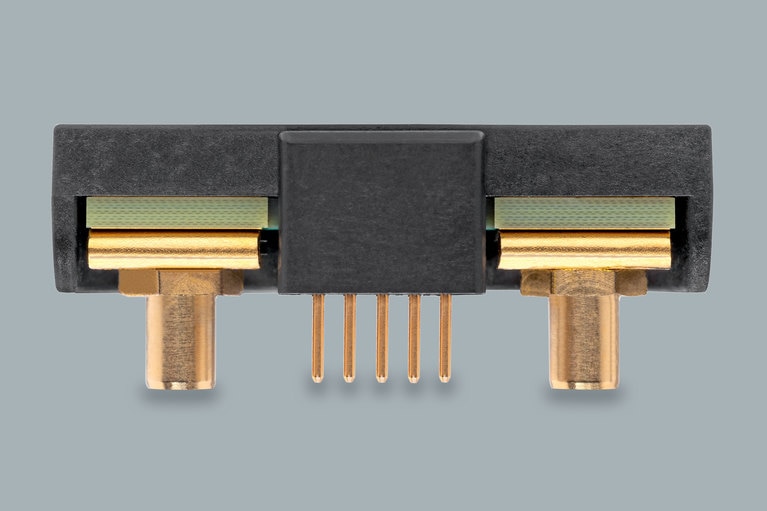

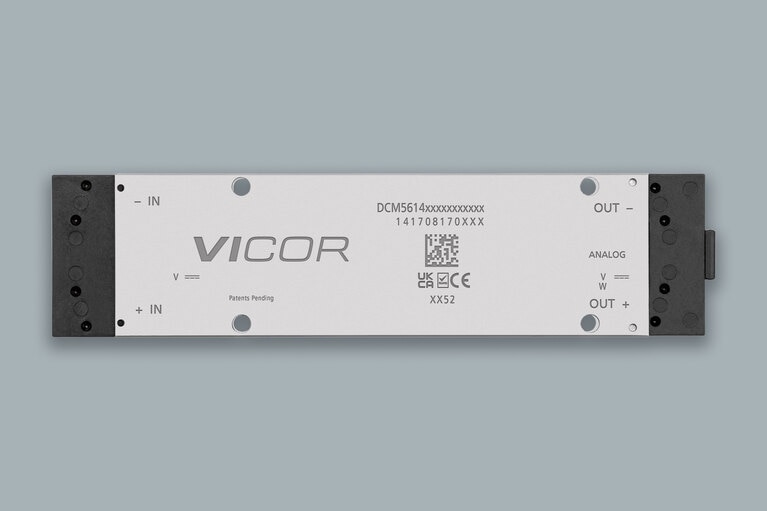

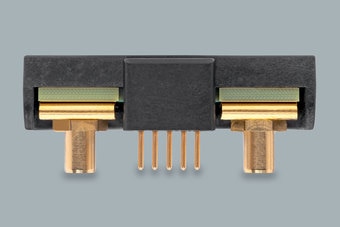

5614 VIA package
5.57 x 1.4 x 0.37in / 141.37 x 35.54 x 9.4mm
DCM5614BD0H36K3T10 in the product family

DCM® DC-DC Converter Module
Input Voltage 270V
Output Voltage 28V
Output Power 1300W
5614 VIA package
5.57 x 1.4 x 0.37in / 141.37 x 35.54 x 9.4mm
Data Sheet
Error Message here
Order an evaluation board

Evaluation Board Users Guide

Option Graph Section

Options
Part Number
DCM5614BD0H36K3T10
Lead time
30 weeks
Minimum order quantity
1
Quantity MSRP
1+ $1,988.39
10+ $1,579.78
25+ $1,441.58
100+ $1,352.11
Depending on material and capacity availability, Vicor may be able to offer expedited production at additional cost to reduce standard lead times. Learn more

Distributor stock

Updated Mar. 25, 2025
10:06 a.m. EDT

Arrow:  0 Avnet:  0 Digi-Key:  0 Mouser:  0

Product Features

Product features

  • Output overvoltage protection
  • High efficiency and power density
  • Robust packaging for harsh environments
  • Integrated EMI and transient filtering
  • Input undervoltage lockout
  • Overtemperature protection
  • Chassis mount or PCB mount packaging options

Accordion Section

  • 5614 VIA DCM Through-Hole with Comm Outline Drawing
    PDF  DXF
  • Product Outline Drawing
    DXF  PDF
  • 5614 VIA Long Pin with Communication
    IGS  STP
  • 5614 VIA DCM Through-Hole Long Pin with Comm Outline Drawing
    STP  IGS
