DCM3717S60E13G5TN1 | DCM® DC-DC Converter Module | Vicor

DCM3717S60E13G5TN1 in the product family

DCM® DC-DC Converter Module

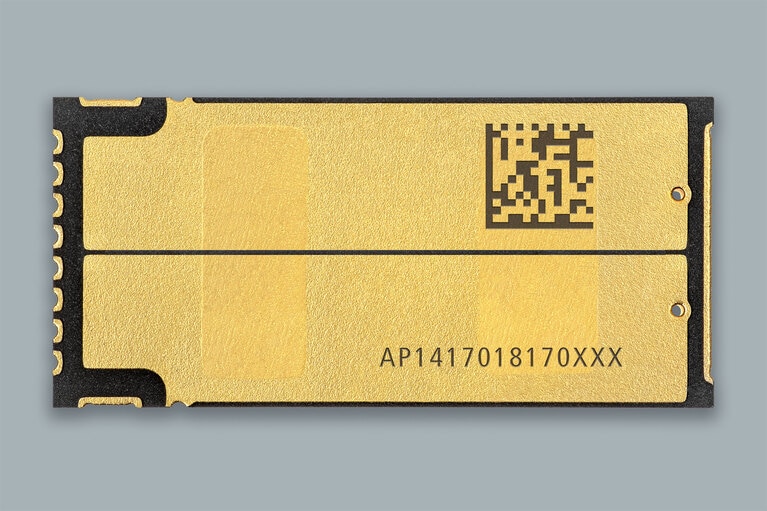

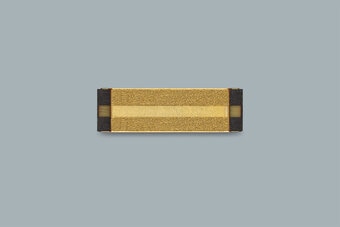

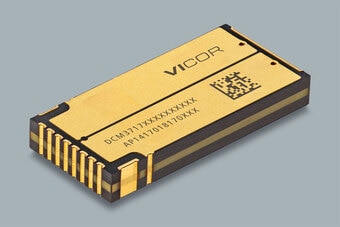

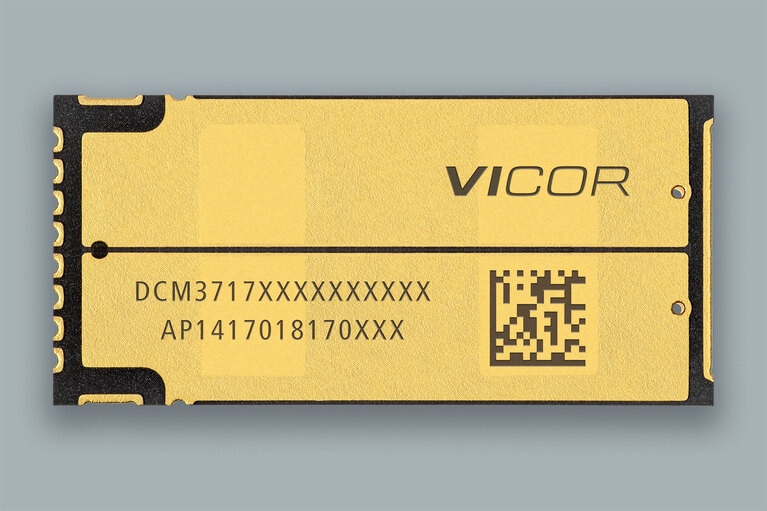

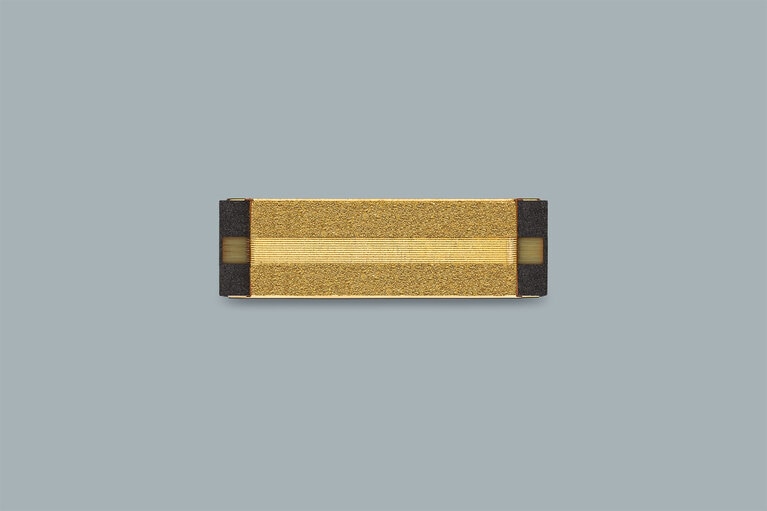

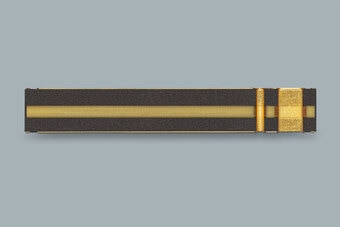

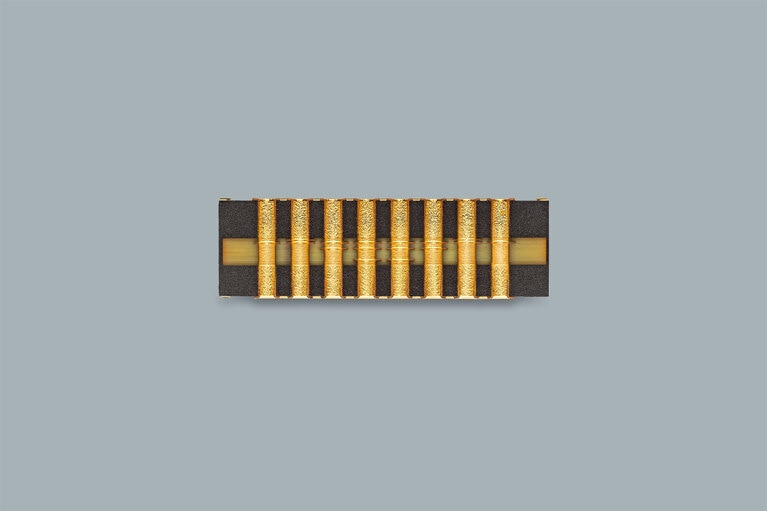

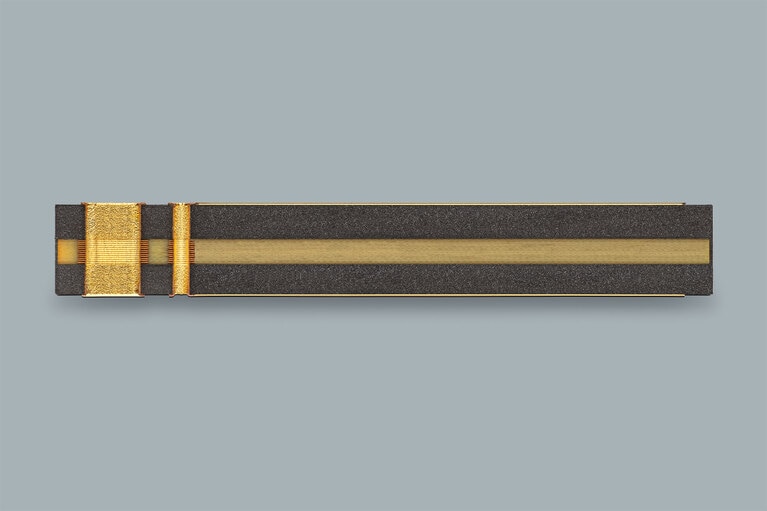

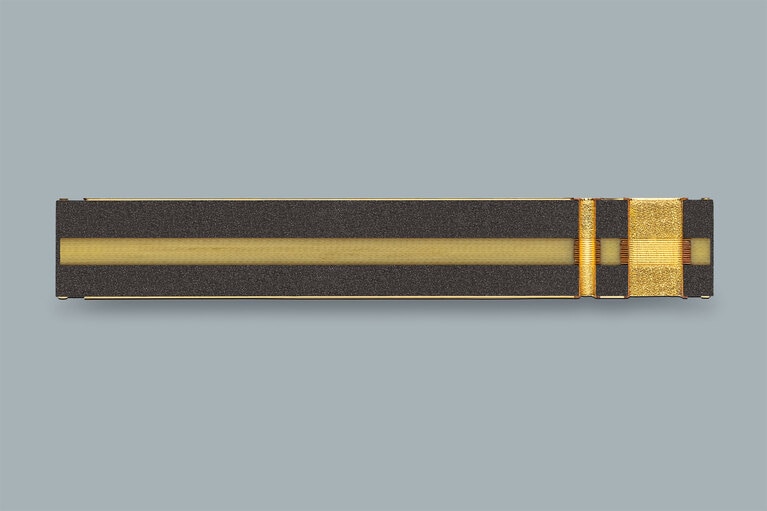

3717 SM-ChiP package
1.445 x 0.68 x 0.198in / 36.71 x 17.27 x 5.03mm
DCM3717S60E13G5TN1 in the product family

DCM® DC-DC Converter Module
Input Voltage 54V
Output Voltage 12.2V
Output Power 750W
3717 SM-ChiP package
1.445 x 0.68 x 0.198in / 36.71 x 17.27 x 5.03mm
Data Sheet
Error Message here
Order an evaluation board
DCM3717E60E13G5TN1

Evaluation Board Users Guide

Option Graph Section

Options
No configuration options available
Part Number
DCM3717S60E13G5TN1
Lead time
28 weeks
Minimum order quantity
25
Quantity MSRP
25+ $154.12
50+ $143.80
100+ $134.17
Product is subject to a 10% tariff surcharge.
Depending on material and capacity availability, Vicor may be able to offer expedited production at additional cost to reduce standard lead times.Learn more

Distributor stock

Arrow:  0 Avnet:  0 Digi-Key:  0 Mouser:  0

Product Features

Product features

  • High power density up to 750W
  • High efficiency up to 96.5%
  • Parallel-capable for higher power applications
  • PMBus® compatible telemetry
  • 40 – 60 VDC input range
  • SM ChiP surface mount package
  • 5.2mm package height
