MIL-COTS VIPAC 電源系統

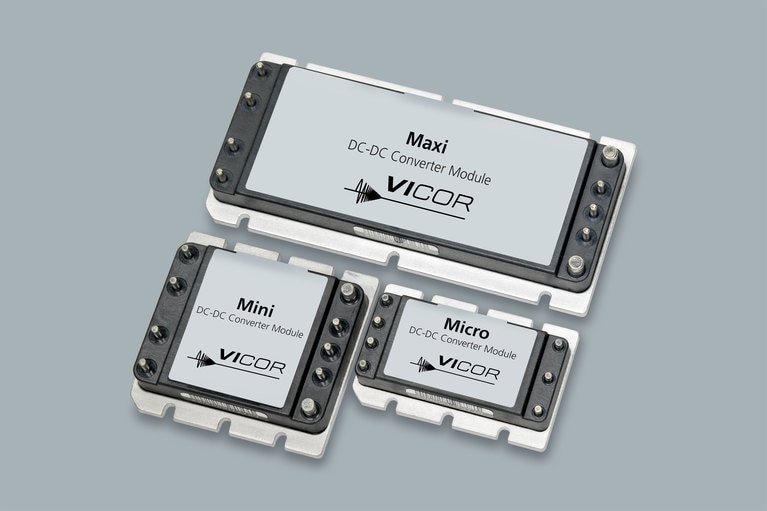

VIPAC系列電源系統是針對MIL-COTS應用的一類新的用戶定制模組化電源解決方案。它集成了提供EMI濾波和暫態保護的Vicor的M-FIAM5B或M-FIAM9;Vicor Maxi、Mini和Micro系列DC-DC轉換器(H或M級);以及輸出連接和機構平臺選項。MIL-COTS VIPAC可以設置低至3.3 Vdc到高至48 Vdc的一路、兩路或三路輸出,以及每路輸出50-400 W的功率水準。VIPAC以低至0.75"高度的各種封裝提供28 Vdc輸入。

Vicor MIL-COTS VIPAC™ Power System

Power System Designer

採用電源系統設計工具快速查找產品Watch demo video

Input specifications

Min input: Minimum input:
Nom input: Nominal input:
Max input: Maximum input:

Output specifications

Output
Min output: Minimum output:
Nom output: Nominal output:
Max output: Maximum output:
Vicor Power System Designer

特性與優勢

特性與優勢

Single, dual or triple outputs

單路、雙路或三路輸出

EMI compliance

符合MIL-STD-461E EMI

Input transient protection

輸入暫態保護
-MIL-STD-704E/F (M-FIAM5B)
-MIL-STD-704A/E/F 和 MIL-STD-1275A/B/D (M-FIAM9)

Compliant to MIL-STD-810 for shock and vibration

Compliant to MIL-STD-810 for shock and vibration

資源

  • VIPAC 電源系統配置 "A"
    PDF
  • VIPAC 電源系統配置"A"
    DXF
  • VIPAC 電源系統配置 "B"
    PDF DXF
  • VIPAC 電源系統配置 "C"
    PDF
  • VIPAC
    DXF
  • 電源系統配置
    DXF
  • VIPAC 電源系統配置 "D"
    PDF DXF
  • VIPAC 電源系統配置 "E"
    PDF DXF
  • VIPAC 電源系統配置 "F"
    PDF DXF
  • VIPAC 電源系統配置 "G"
    PDF DXF

Promo Component

在資源庫中查看更多檔案、影片和案例研究

相關產品

相關產品

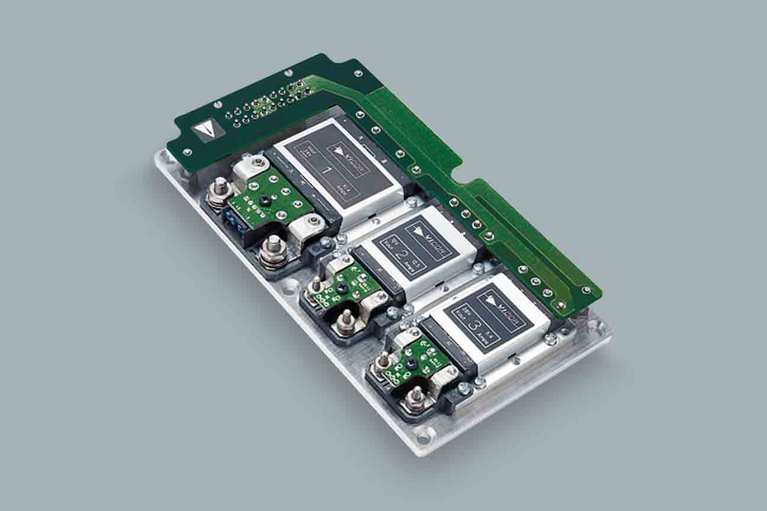

MIL-COTS VIPAC陣列

A highly flexible system of DC input; power building blocks that can be configured for up to 4 outputs

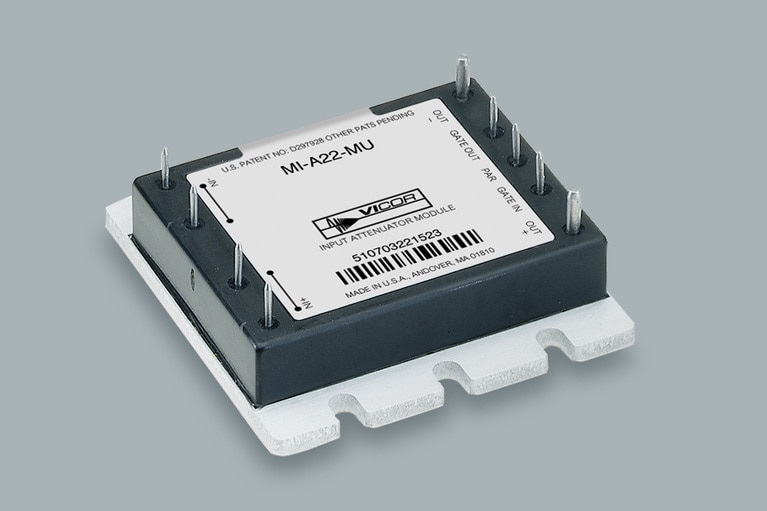

MI-IAM
