IAM™ input filter
for VI-200/VI-J00

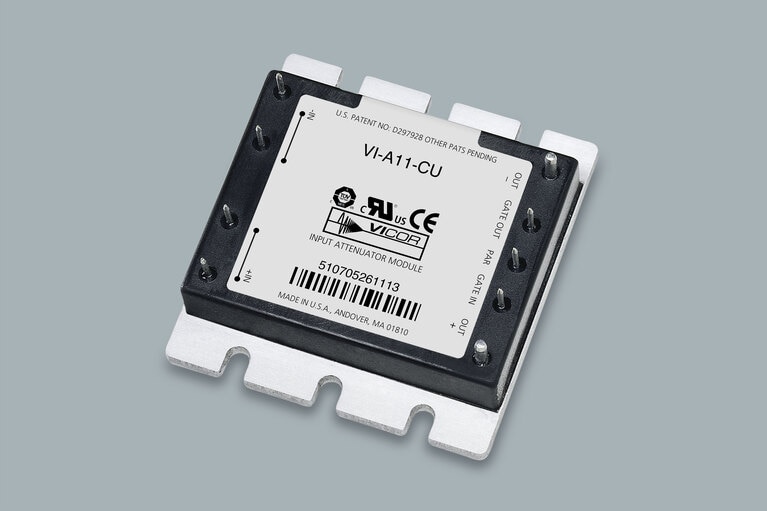

The IAM (Input Attenuator Module) is a component-level, DC-input front-end filter designed to occupy minimum board space while providing maximum protection for today's sophisticated electrical systems. The IAM in combination with 24, 48 and 300VDC input modules, provides a highly-efficient, high-density power system with outputs from 1 to 95VDC and power up to 400W (expandable to 800W). Your system will benefit from the small size, efficiency and inherent reliability of Vicor component-level converters, while meeting the toughest demands of telecommunications and industrial power applications.
Filter Products
0 Products
0 Products
| Part Number | Data Sheet | Input (V) | Temperature | Power (W) | RoHS Compliant | Add to cart / view details | ||
|---|---|---|---|---|---|---|---|---|
|
VI-AWW-EU
|
|
Part Number: VI-AWW-EU |
Data Sheet:
 |
Input (V):
18 – 36
|
Temperature:
–10°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
No
|
View details |
|
VI-A11-CU
|
|
Part Number: VI-A11-CU |
Data Sheet:
|
Input (V):
21 – 32
|
Temperature:
–25°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
No
|
View details |
|
VI-AWW-CU
|
|
Part Number: VI-AWW-CU |
Data Sheet:
|
Input (V):
18 – 36
|
Temperature:
–25°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
No
|
View details |
|
VI-A11-IU
|
|
Part Number: VI-A11-IU |
Data Sheet:
|
Input (V):
21 – 32
|
Temperature:
–40°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
No
|
View details |
|
VI-AWW-IU
|
|
Part Number: VI-AWW-IU |
Data Sheet:
|
Input (V):
18 – 36
|
Temperature:
–40°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
No
|
View details |
|
VI-A11-MU
|
|
Part Number: VI-A11-MU |
Data Sheet:
|
Input (V):
21 – 32
|
Temperature:
–55°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
No
|
View details |
|
VI-AWW-MU
|
|
Part Number: VI-AWW-MU |
Data Sheet:
|
Input (V):
18 – 36
|
Temperature:
–55°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
No
|
View details |
|
VE-A11-EU
|
|
Part Number: VE-A11-EU |
Data Sheet:
|
Input (V):
21 – 32
|
Temperature:
–10°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
Yes
|
View details |
|
VE-AWW-CU
|
|
Part Number: VE-AWW-CU |
Data Sheet:
|
Input (V):
18 – 36
|
Temperature:
–25°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
Yes
|
View details |
|
VE-A11-IU
|
|
Part Number: VE-A11-IU |
Data Sheet:
|
Input (V):
21 – 32
|
Temperature:
–40°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
Yes
|
View details |
|
VE-AWW-IU
|
|
Part Number: VE-AWW-IU |
Data Sheet:
|
Input (V):
18 – 36
|
Temperature:
–40°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
Yes
|
View details |
|
VE-A11-MU
|
|
Part Number: VE-A11-MU |
Data Sheet:
|
Input (V):
21 – 32
|
Temperature:
–55°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
Yes
|
View details |
|
VE-AWW-MU
|
|
Part Number: VE-AWW-MU |
Data Sheet:
|
Input (V):
18 – 36
|
Temperature:
–55°C to +100°C
|
Power (W):
200
|
RoHS Compliant:
Yes
|
View details |
|
VI-A66-EQ
|
|
Part Number: VI-A66-EQ |
Data Sheet:
|
Input (V):
200 – 400
|
Temperature:
–10°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
No
|
View details |
|
VI-A33-CQ
|
|
Part Number: VI-A33-CQ |
Data Sheet:
|
Input (V):
42 – 60
|
Temperature:
–25°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
No
|
View details |
|
VI-ANN-CQ
|
|
Part Number: VI-ANN-CQ |
Data Sheet:
|
Input (V):
36 – 76
|
Temperature:
–25°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
No
|
View details |
|
VI-A66-CQ
|
|
Part Number: VI-A66-CQ |
Data Sheet:
|
Input (V):
200 – 400
|
Temperature:
–25°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
No
|
View details |
|
VI-A33-IQ
|
|
Part Number: VI-A33-IQ |
Data Sheet:
|
Input (V):
42 – 60
|
Temperature:
–40°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
No
|
View details |
|
VI-ANN-IQ
|
|
Part Number: VI-ANN-IQ |
Data Sheet:
|
Input (V):
36 – 76
|
Temperature:
–40°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
No
|
View details |
|
VI-A66-IQ
|
|
Part Number: VI-A66-IQ |
Data Sheet:
|
Input (V):
200 – 400
|
Temperature:
–40°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
No
|
View details |
|
VI-A66-MQ
|
|
Part Number: VI-A66-MQ |
Data Sheet:
|
Input (V):
200 – 400
|
Temperature:
–55°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
No
|
View details |
|
VE-ANN-CQ
|
|
Part Number: VE-ANN-CQ |
Data Sheet:
|
Input (V):
36 – 76
|
Temperature:
–25°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
Yes
|
View details |
|
VE-A66-CQ
|
|
Part Number: VE-A66-CQ |
Data Sheet:
|
Input (V):
200 – 400
|
Temperature:
–25°C to +100°C
|
Power (W):
400
|
RoHS Compliant:
Yes
|
View details |
Power System Designer
Quick product searchWatch demo video
Output
Min output:
Minimum output:
Nom output:
Nominal output:
Max output:
Maximum output:
Features and Benefits
Features and benefits
High surge withstand
Input polarity protection
Logic disable
Expansion output for arrays (up to 800W)
