Case study: Vehicle protection and countermeasures

Quickly modifying a standard SOSA supply to meet an applications hold-up requirements

Download the case studyPDF

Customer’s challenge

Vehicle protection and countermeasures require 800W of power in a single 3U slot to use both jamming/spoofing and physical intercept methods to defend against threats to the vehicle. The customer-defined specific hold-up requirements and needed to deploy in a cost-effective manner.

  • Specific hold-up requirements
  • Provide enough power in a single 3U slot
  • Commonality (form factor 3U) and budget sensitivity
Vehicle protection and countermeasures image

The Vicor solution

The Vicor SOSA 3U power supply can be quickly modified by the Vicor engineering team to meet different hold-up specifications and power requirements. A Vicor SOSA aligned power supply meets MIL-STD, eliminating the significant timeframe and effort to qualify for the standards. An additional benefit in selecting this power supply is the ability to quickly adapt to future changes and get to market sooner.

主要优势

主要优势

Modified to meet customer-specific hold-up requirements SOSA compliant 3U power supply

Modular approach enables quick design modifications and prototyping

Thermal efficiency

供电网络

The Vicor SOSA-compliant 3U power supply is based on Vicor DCM™ DC-DC converter technology, which provides superior density in a low-profile package. This solution can provide up to 800W within the 3U package and can be customized to meet specific hold-up requirements. It employs high efficiency, two-sided conduction-cooled modules, and up to four power supplies can be paralleled to increase output power capability with proprietary wireless current sharing.

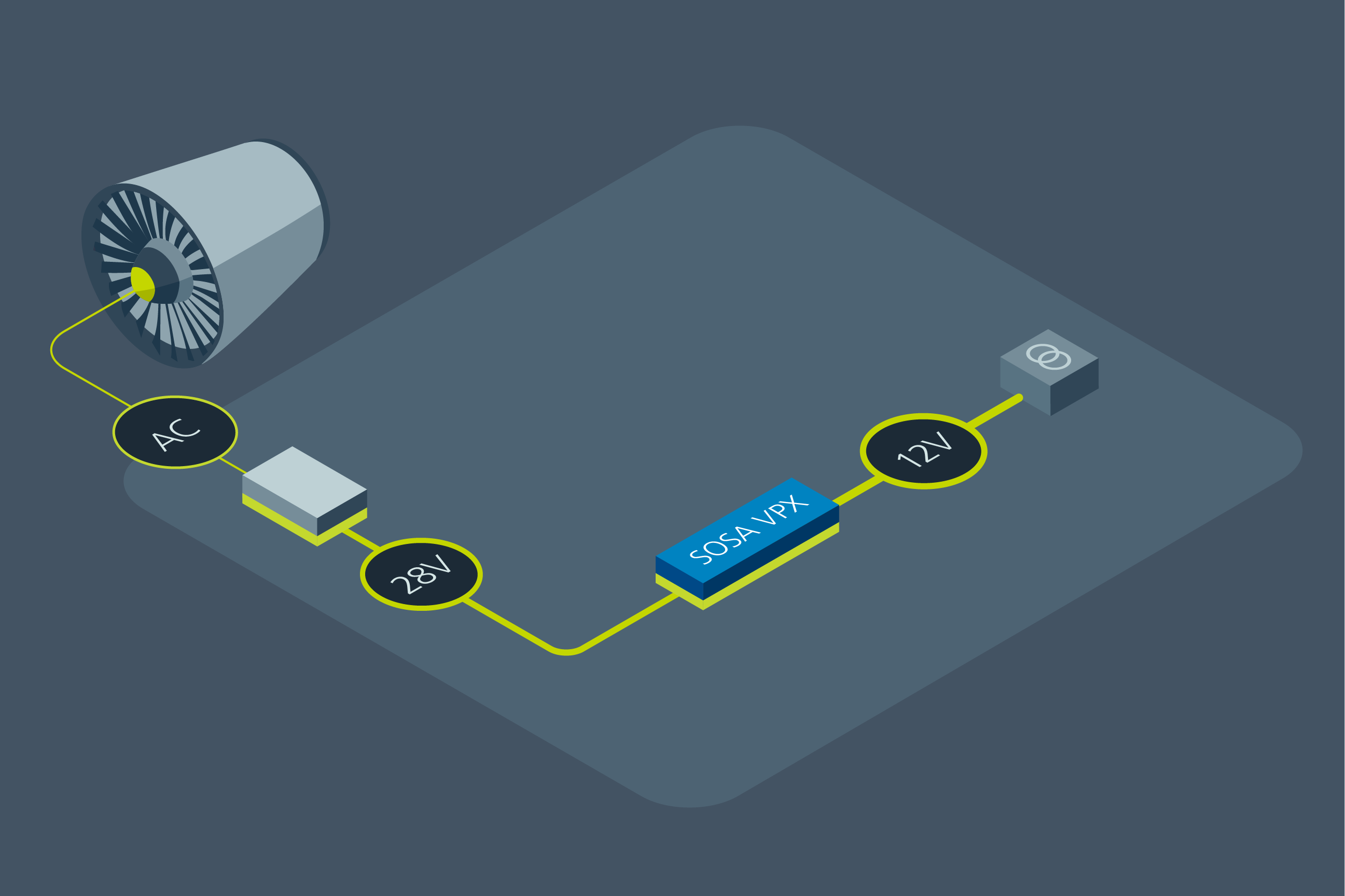

Vicor power delivery network for Vehicle protection and countermeasures
SOSA-aligned power supplies

 符合 SOSA™ 标准的电源

VPX 系统

输入：10 – 45V, 18 – 45V

输出：12V main, 3.3V auxillary

功率：高达 800W

小巧至 3.9 x 6.6 x 0.95 英寸
