Case study: Ground mobile radar
Adjusting one of the VITA supply voltage outputs easily and quickly
Customer’s challenge
Recent battlefield experiences demand the rapid introduction of new protection systems for armored vehicles capable of detecting incoming threats: drones, micro-drone, projectiles and guide countermeasures. Time-to-market as well as a modern, open system architecture were essential to meet the market demands: the customer needed a VITA 62 compliant power supply but also customized outputs as well a quick development time and cost-effective NRE.
- Reduced time to market
- Customized outputs to meet specs
- Perform in the harsh conditions of battle
The Vicor solution
Vicor VPX solutions are time- and cost-efficient but also eliminate the need for re-engineering and trouble-shooting complex discrete component designs. In-depth tests verified system robustness in the demanding environment of modern armored vehicles. The supply was configured to provide the specific output required for radar main power supply, while maintaining VITA 62 compliance.
主要优势
主要优势
Reduce time to market and lower non-recurring engineering
A customized output voltage for the radar power supply
Rugged, reliable power supply

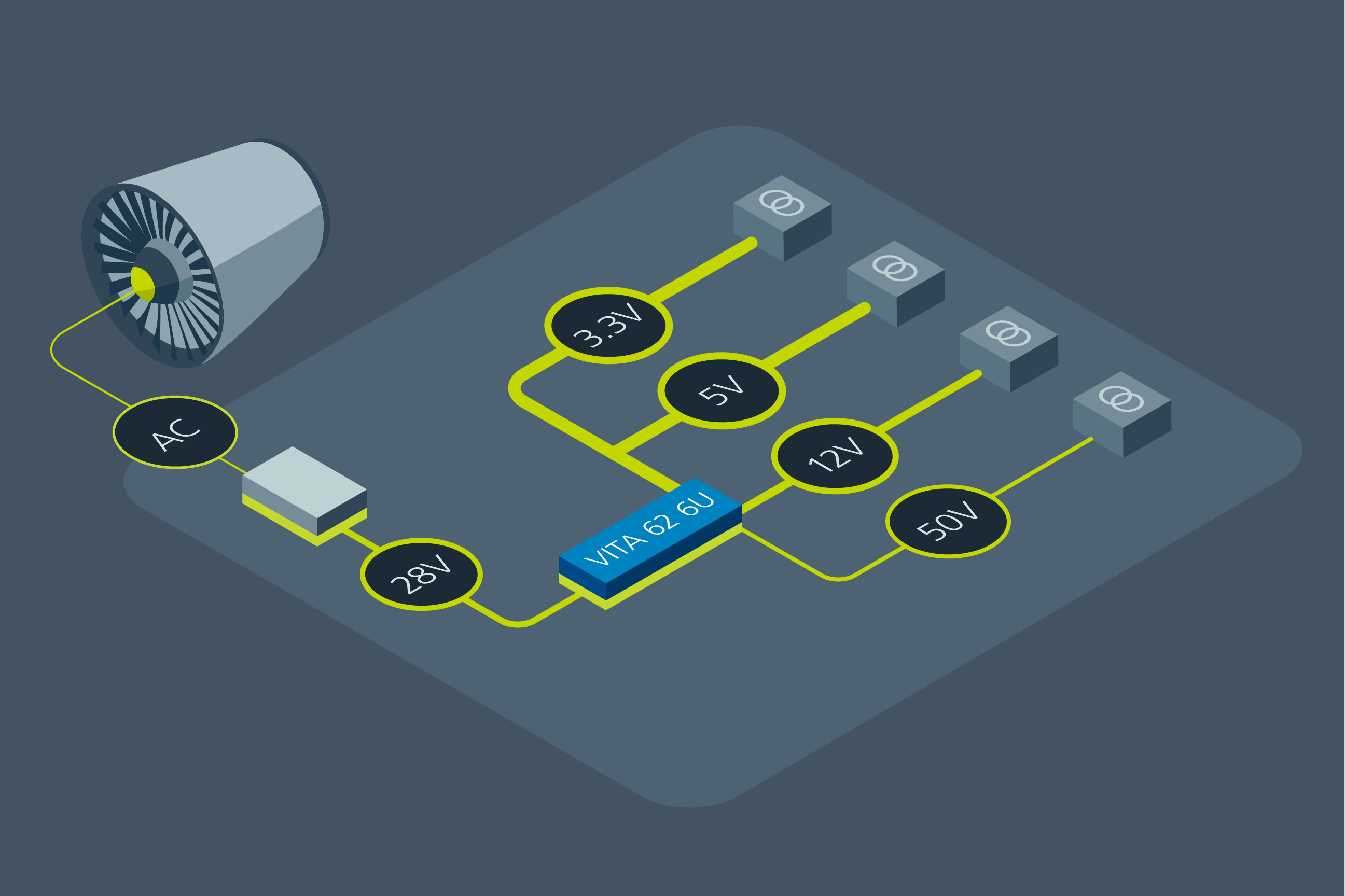

供电网络
Vicor rugged, VITA 62 SOSA compliant OpenVPX Power Supplies, based on Vicor DCM™ DC-DC converters provide not only unrivaled power density and reliability but are also easily configurable. This solution can provide up to 800W within the 3U package and employs high efficiency, two-sided conduction-cooled modules. Up to four power supplies can be paralleled to increase output power capability with proprietary wireless current sharing.
VPX systems
输入：28V, 270V, 115 VAC LTN
输出：–12, 3.3, 5, 12, 28V
功率：高达 1000W
全功率至 85°C (卡边处)
小巧至 3.9 x 6.6 x 0.95英寸
